Description
- LVHD-technology for high-contrast and flicker-free picture in FullHD+ quality
- NELE-technology (Natural-Evolutionary-Light-Experience) minimizes reflections and shadows - works well with high-gloss documents
- captures an entire standard size document
- ergonomic movable monitor ensures comfortable reading
- easy positioning of text, pictures and objects due to movable XY table, with horizontal/vertical friction brake
- ergonomic and flexible operation via detachable radio control; secure placement underneath the monitor or at the side of the XY table
- energy saving light mode
- lightweight and sturdy design (approximately 12 kg with monitor)
- user menu for extended individual settings
- more individual adjustments via the internal user menu or additional options
- energy-saving, recyclable, eco-friendly, made-in-Germany
The VEO camera - your benefits at a glance
- FullHD+ camera with 18x optical zoom
- excellent image quality even when using a high zoom level
- LVHD-technology enables high-contrast and flicker-free picture in FullHD+ quality
- NELE-technology (Natural-Evolutional-Light-Experience): While hand-writing,
- the user can benefit from reduced shadows and reflections.
- magnification from 1x to 100x (independent of monitor size)

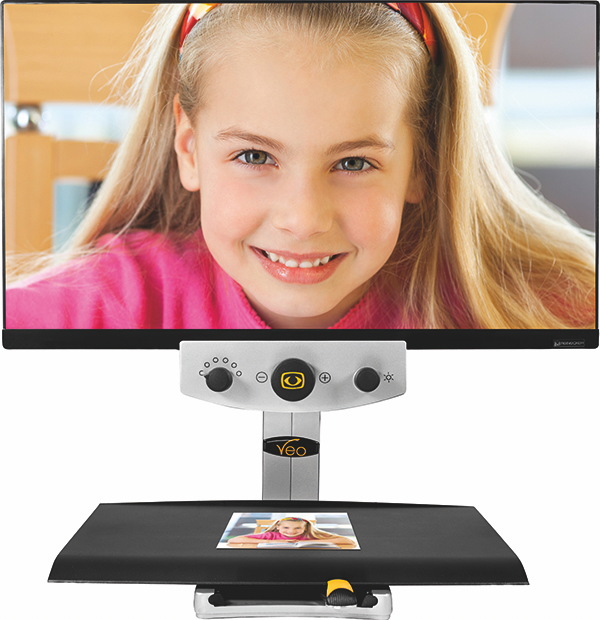

The VEO monitor – your benefits at a glance
- high resolution LED flat screen monitor, 24" class (VEO also available without monitor)
- ergonomic movable monitor enables comfortable reading: vertically adjustable, tiltable, rotary and 90° rotatable, to capture columns or an entire standard document
- flat screen, lightweight, energy-saving and flicker-free
- 1080 p monitor resolution = FullHD = 1920 x 1080 pixels
SWITCH version advantages :
- when using different sources - the user can comfortably switch from internal camera picture display to another picture source (e.g. laptop)
- second source interface: HDMI input for PC, laptop, or additional camera connection
- HDMI output for external monitor or TV connection
- ideal for the use in schools or at work: Display of the computer image on VEO monitor or on an external monitor
- available option: HDMI / USB3 splitter, VARIO distance camera
Specifications
Vario camera:
- FullHD+ camera with digital zoom
- magnification approx. 1 - 100x
Screen:
- 24"-class | 61.5 cm | LED flat screen monitor | 1920 x 1080 pixels
Colour representation:
- true colour mode
- semi colour mode: individually selectable semi colour modes
weight & measurements: weight approx.
- 7.7 kg (no monitor, with XY table)
- 12 kg (with monitor and XY table)
- dimensions approx. (W x H x D) 54 x 64 x 56 cm (with monitor)
equipment:
- radio-remote control: 3-buttons operation
- comfortable XY table
- line masking /- ruler
- overview function, dimming function
- user menu for further customization
- NELE-technology (Natural-Evolutionary-Light-Experience)
available options:
- VARIO distance camera
- Joystick
- HDMI / USB3 Splitter
- height adjustable CCTV carts
